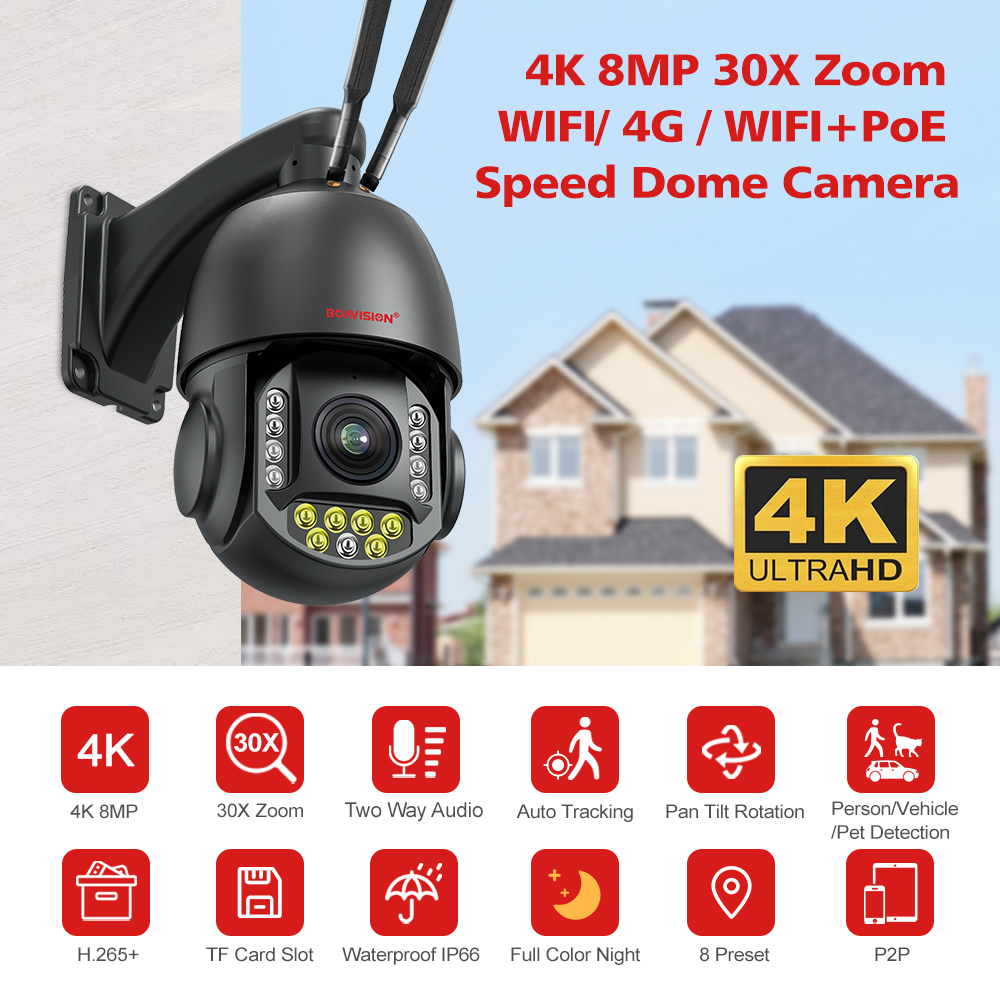

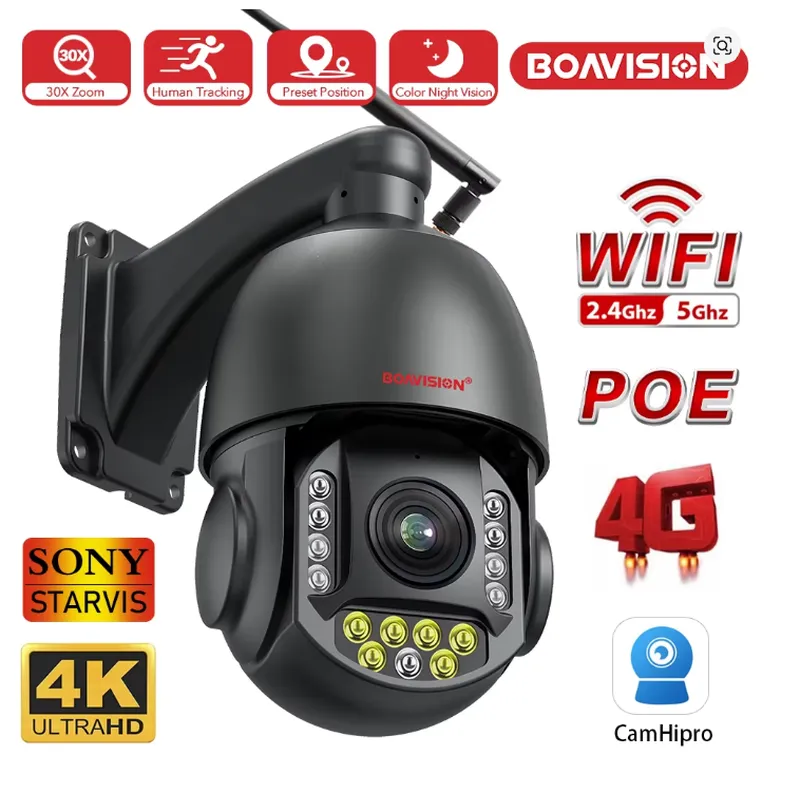

4K 8MP 30X Zoom 4G / WIFI / POE WIFI PTZ Speed Dome
Surveillance Security Camera

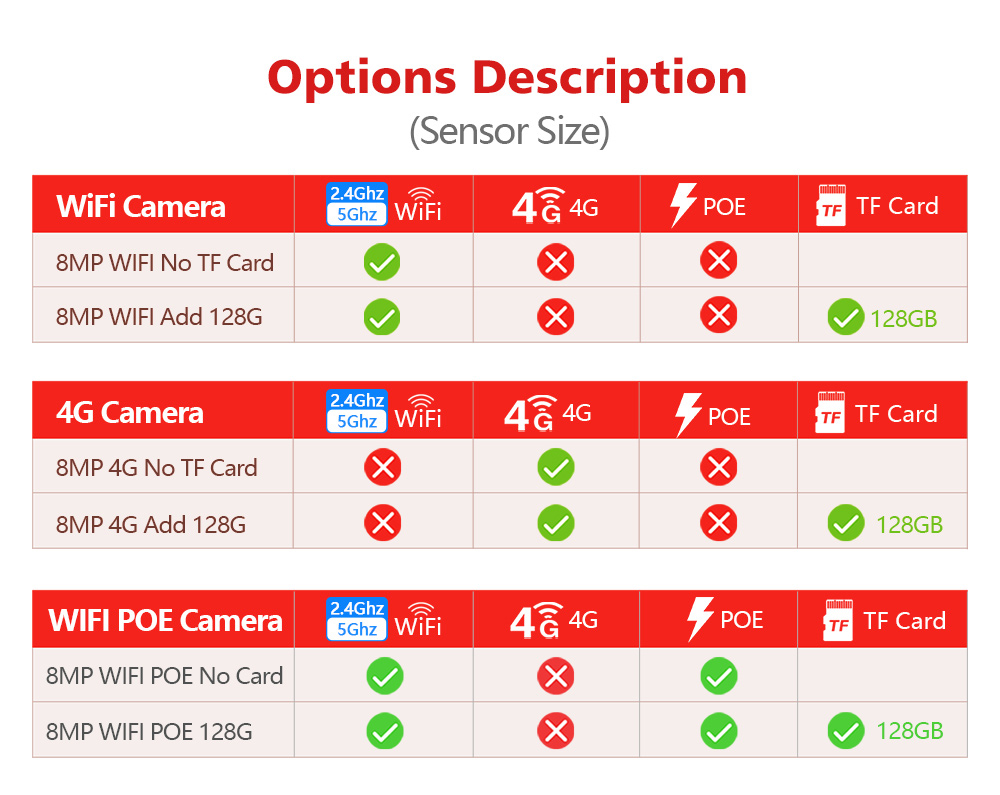

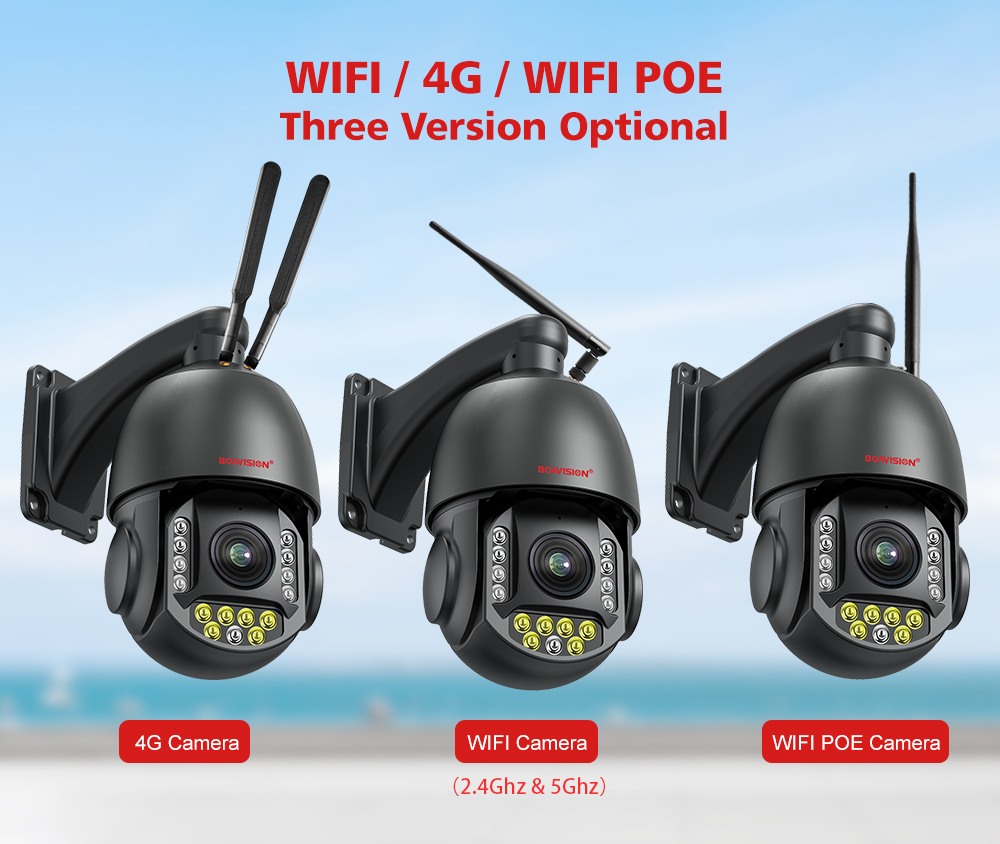

Wifi Camera/ 4G Camera/ WIFI POE Camera Three Version Options
( WIFI camera support dual band wifi 2.4Ghz & 5Ghz )
4K 8MP Ultra-HD Resolution

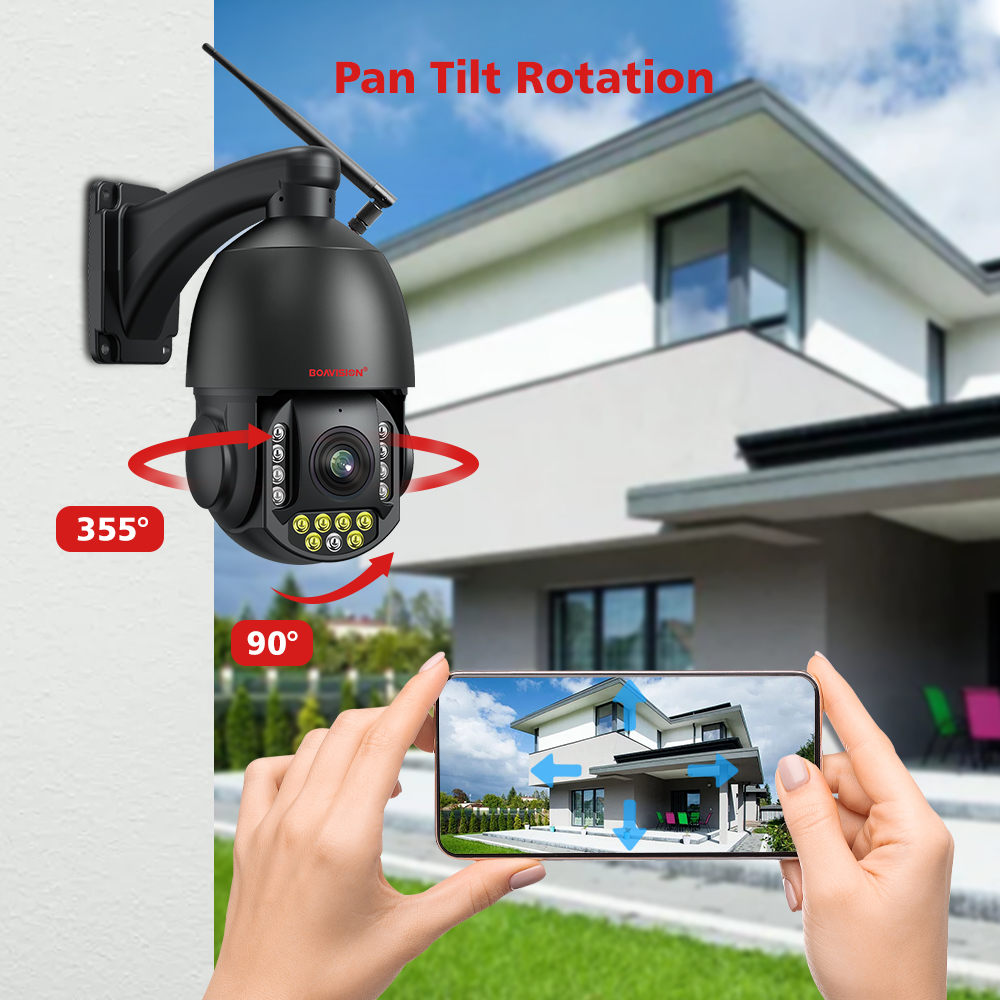

Pan Tilt Rotation
Horizon: 0 To 355 Degree ; Vertical: 0 To 90 Degree
Two Way Audio Talk Back
Built-in microphone and speaker, support two way audio talk back

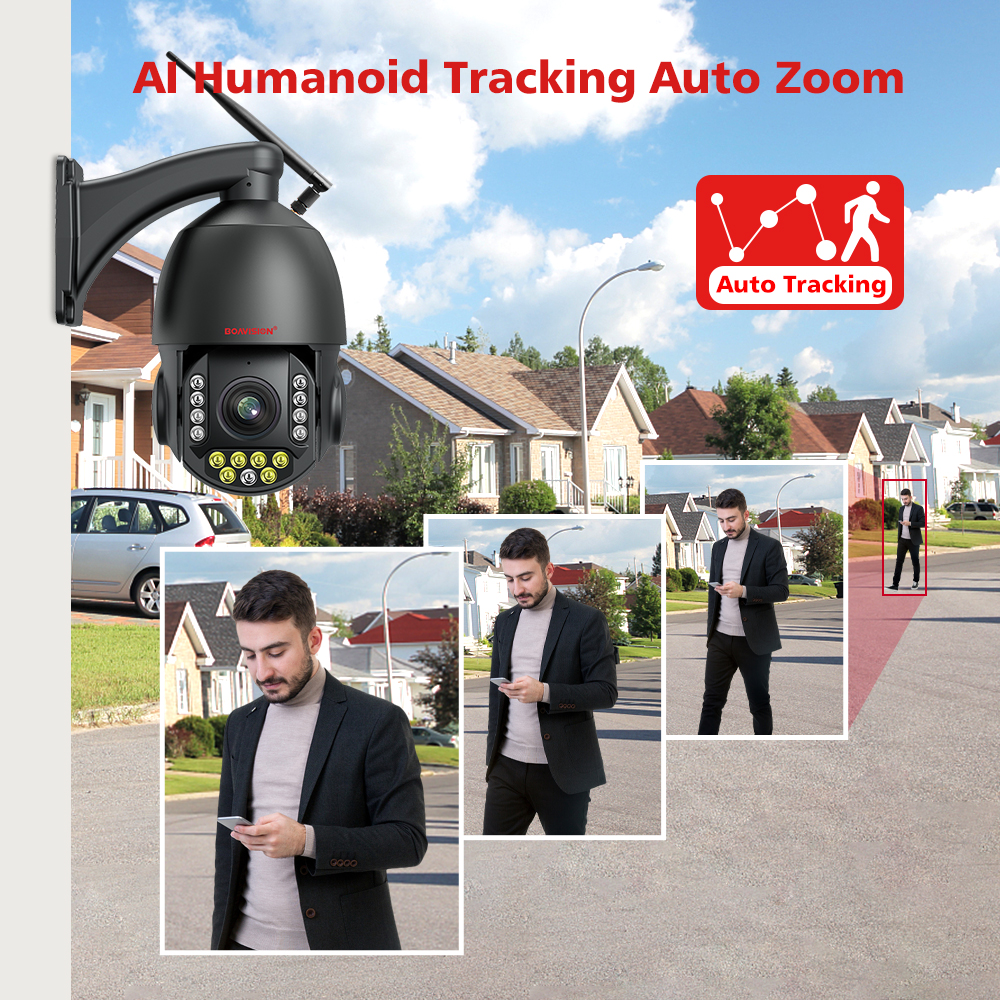

AI Humanoid Tracking Auto Zoom
The camera will adjust the pan/tilt rotation and zoom in automatically, capturing clear monitoring targets and auto-tracking moving human,and push alerts via email or notifications to your phone.

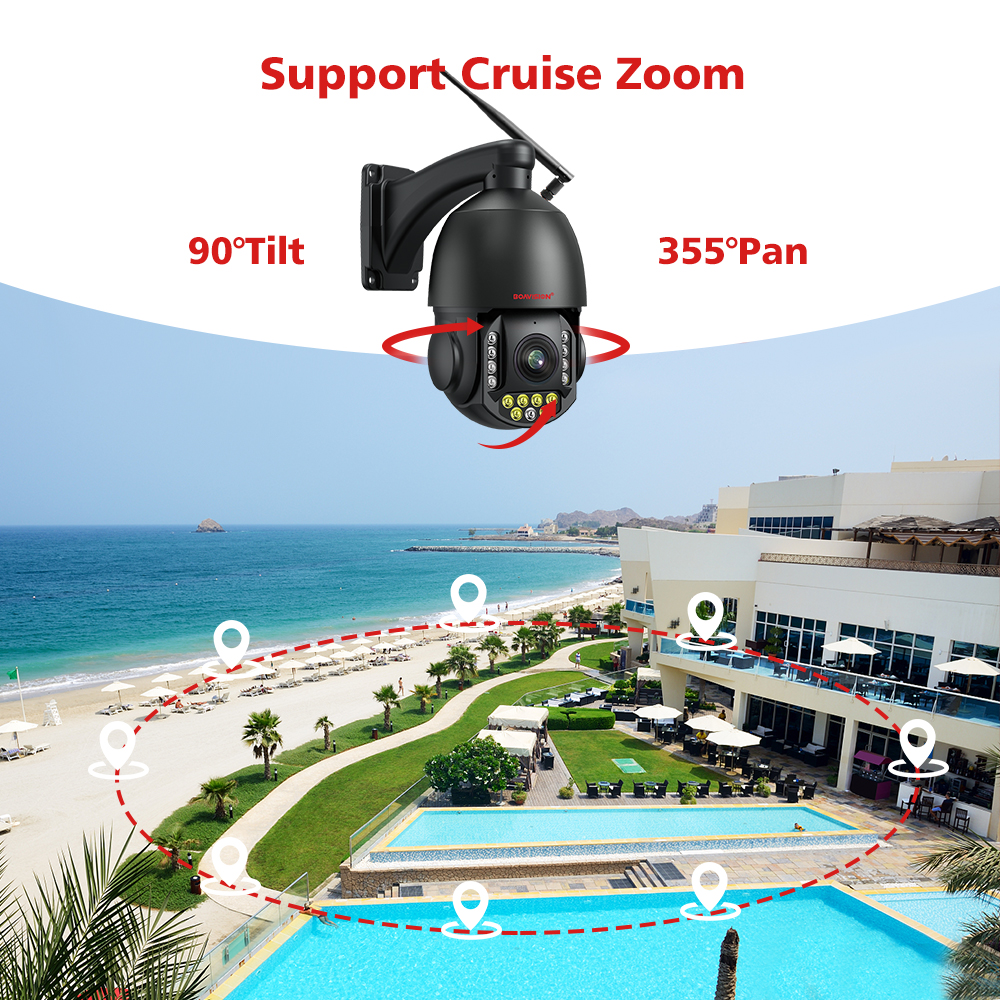

Support Cruise Zoom
Setup the preset positions and patrol between these preset positions,like a reliable patrolman to help you protect your home.
Full Color Night Vision
With 9pcs white leds, the camera can show full color night vision, see more clearly at night.
Motion Detection & Alarm Alert
Support Voice alarm,Email Alarm,FTP Alarm,With motion detection features,real-time alerts will send to your phone to avoid property loss. Or set motion detection zones to focus on important areas like doors or windows, you'll get motion clip alerts only when something happens there.

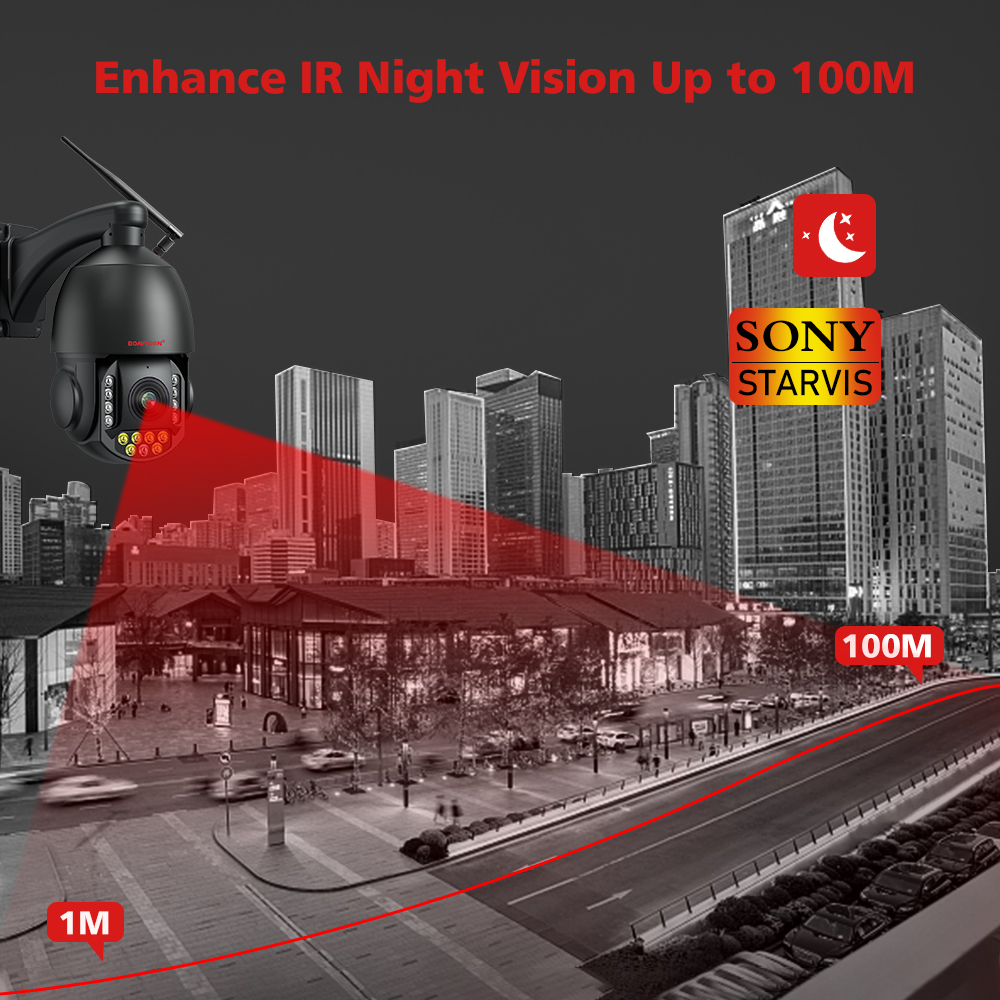

Enhance IR Night Vision Up to 100M
The built-in CCD chip, starvis night vision help you see clear every details even in the backlight and night.
AI Smart Humanoid / Vehicle / Pets Detection
Quickly recognize humanoid / vehicle / pet targets and immediately send a notification to your phone only when triggered alarm, which help you filter out the annoying false alerts .

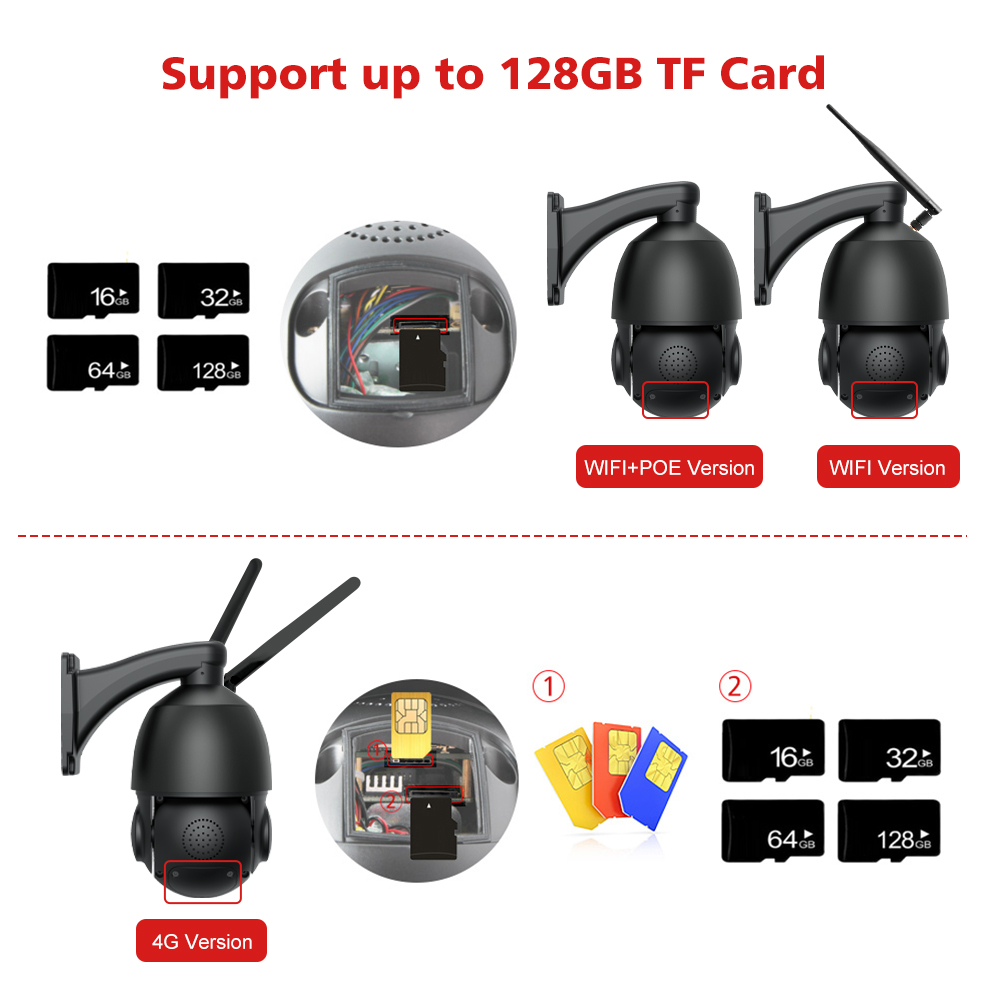

Support up to 128GB TF Card
Built-in TF Card Slot , Supports TF card storage up to 128GB.

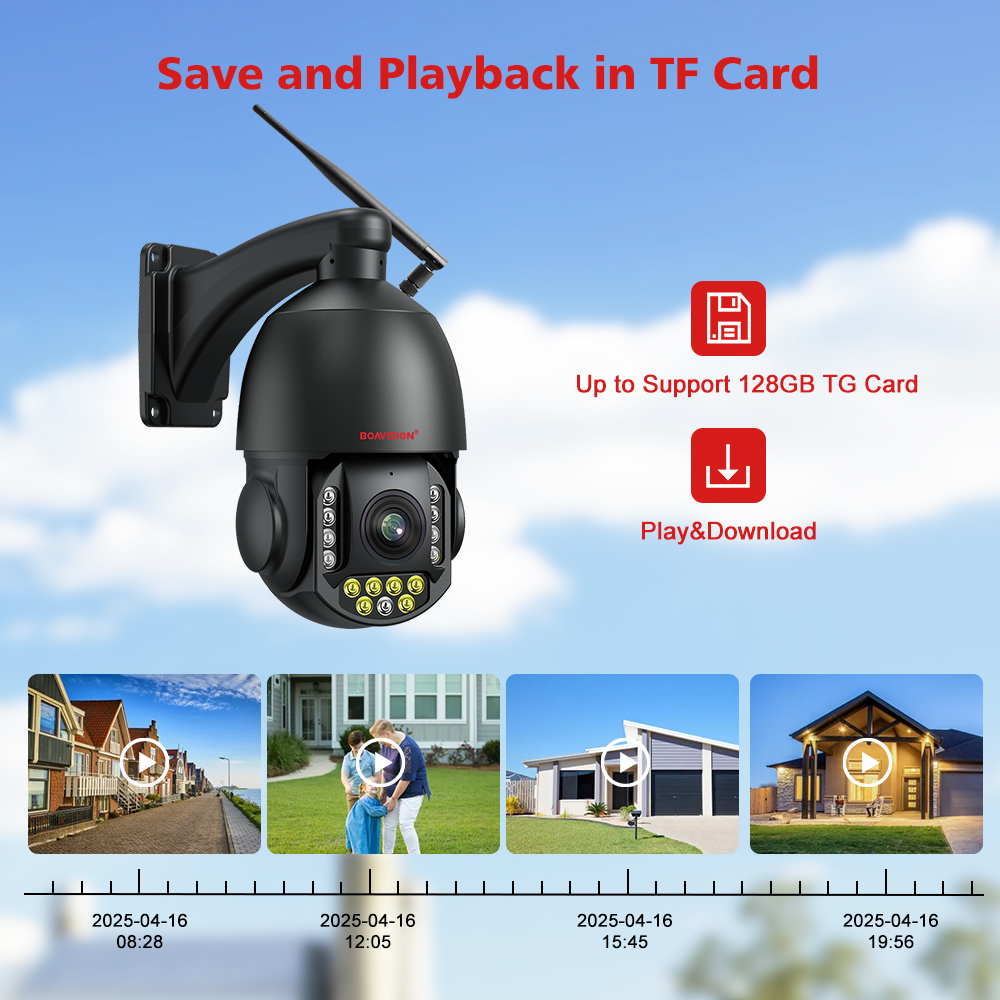

Video Save and Playback
Insert TF card and automatically save videos into TF Card,search and look video playback via Phone APP anytime anywhere.

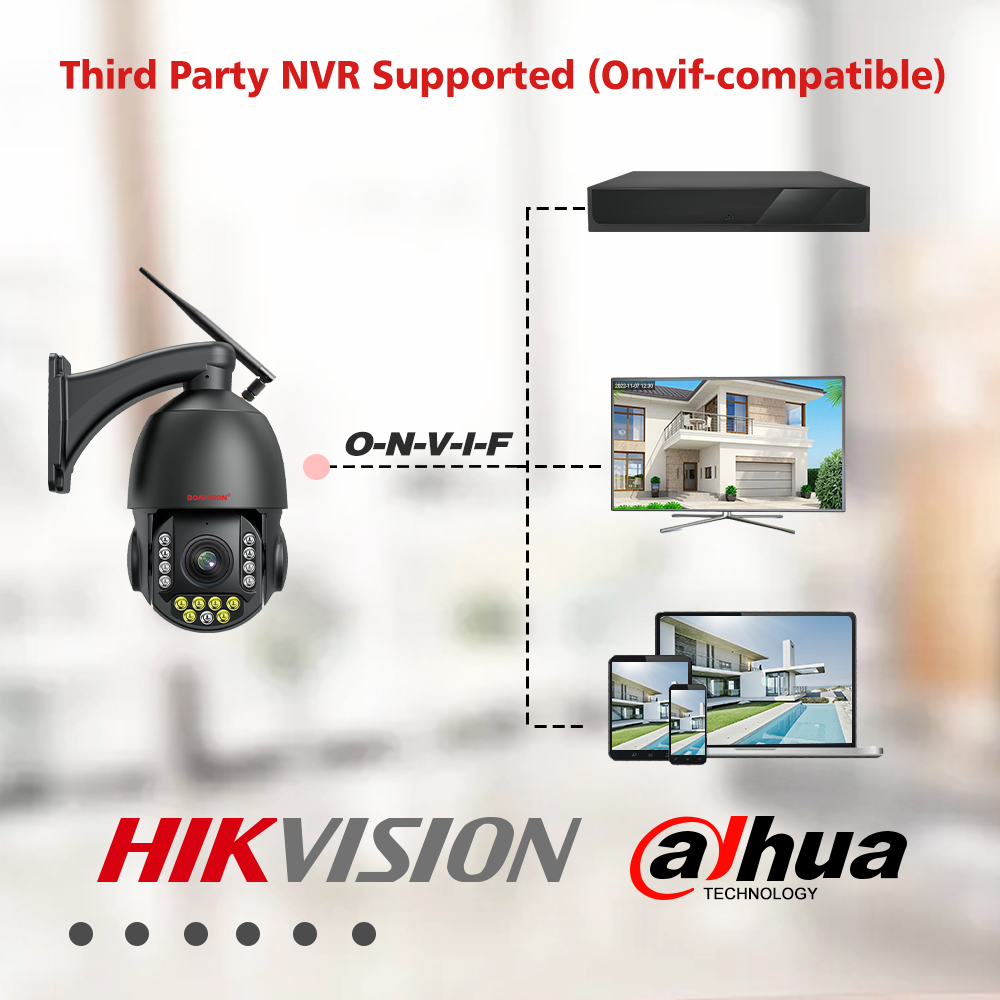

Third Party NVR Supported ( onvif-compatible )
Camera support onvif, can work with any other third party software and NVR.

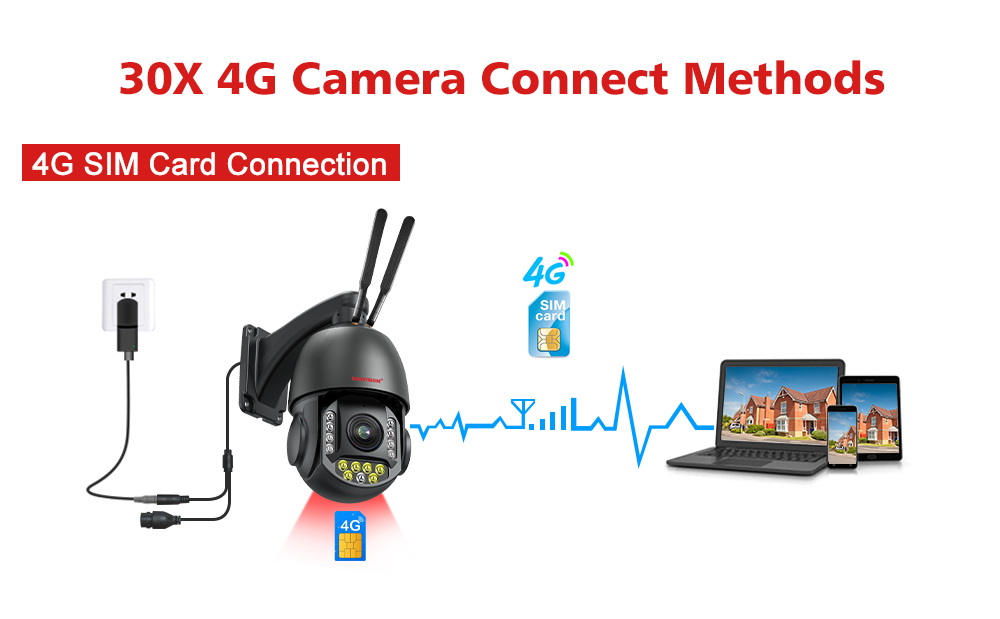

30X 4G Camera Connect Methods

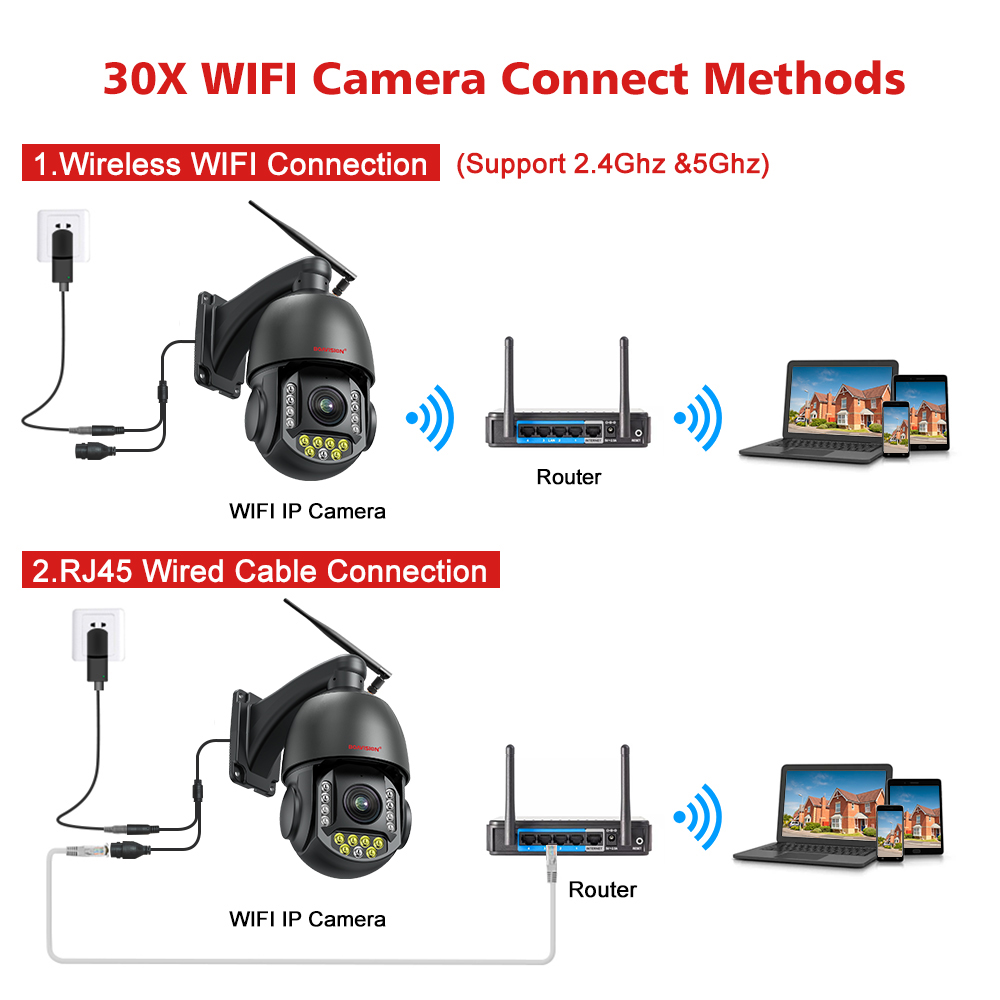

30X WIFI Camera Connect Methods
( WIFI camera support 2.4Ghz & 5Ghz dual-band wifi or connect with RJ45 Network cable )

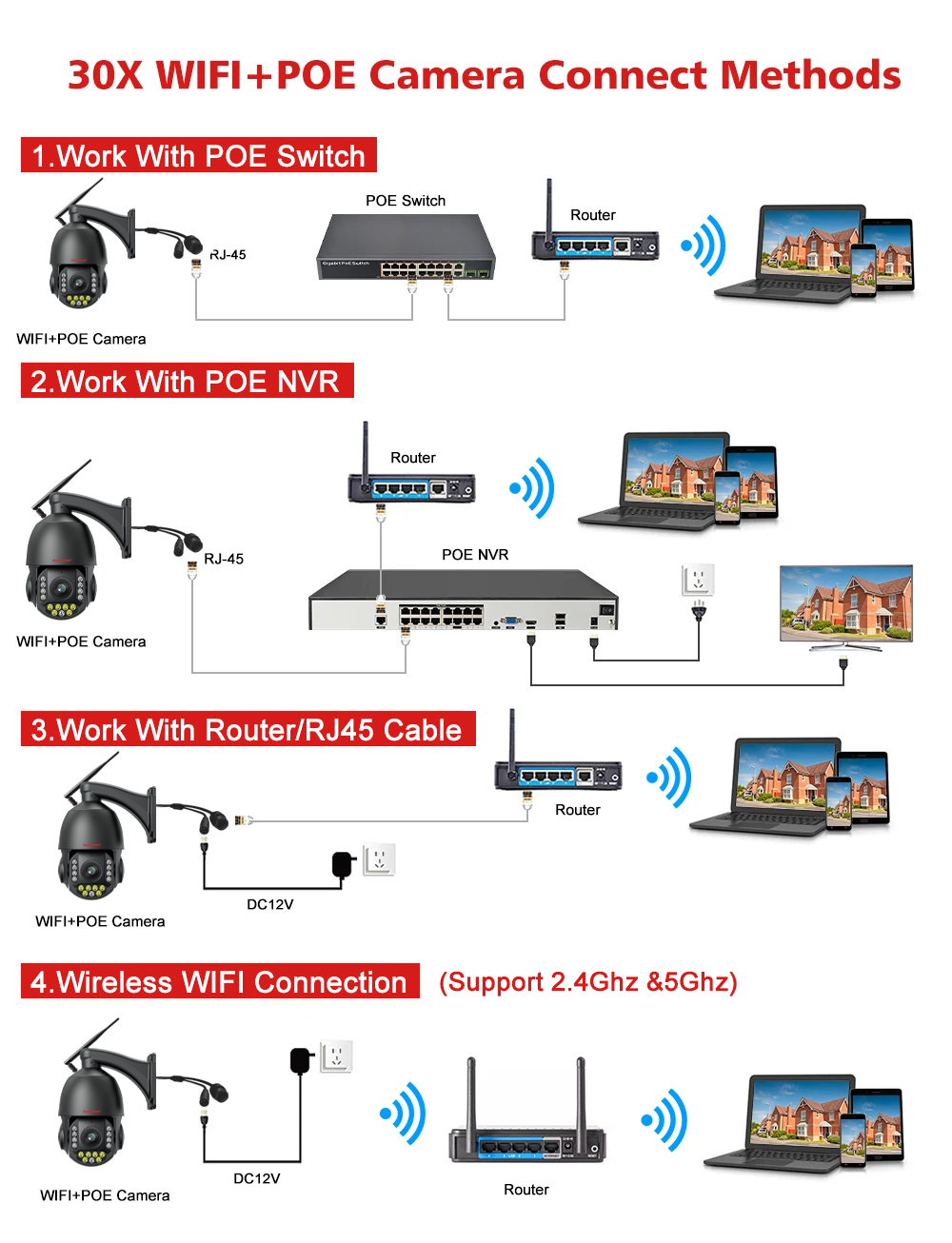

30X POE+WIFI Camera Connect Methods
Security camera not only can be used as a wifi camera , but also a POE camera

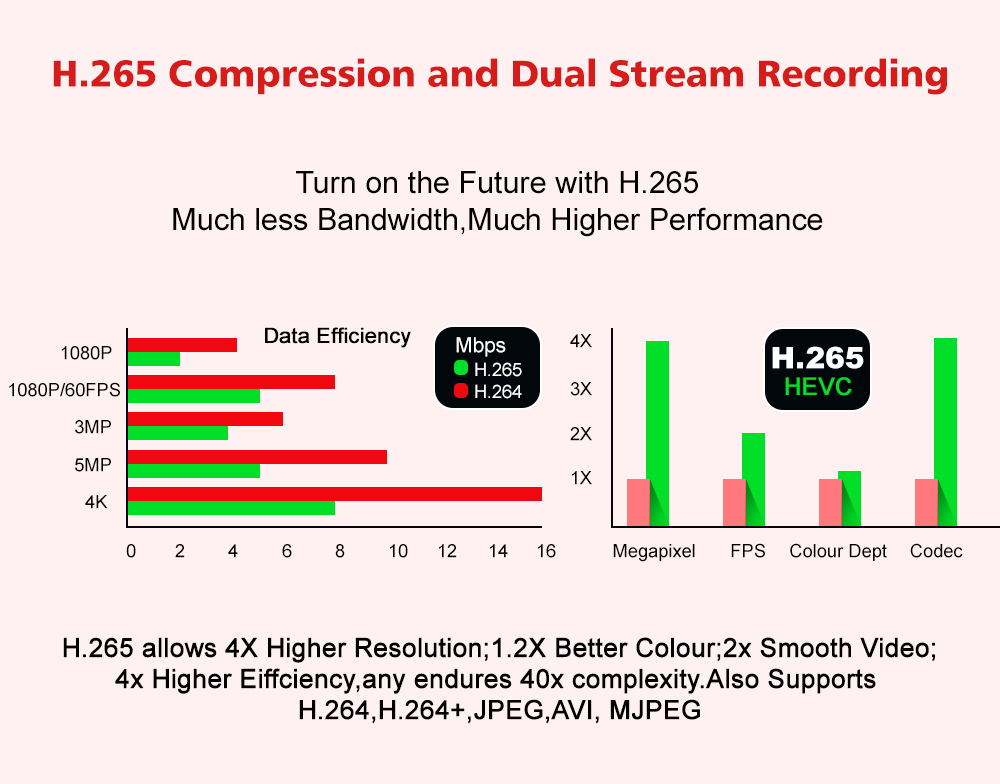

H.265 Compression and Dual Stream Recording
Adopting the advanced H.265 video compression, the bandwidth efficiency and transmission speed are greatly increased.
H.265 help you save 50% storage space than others.
While dual-stream separates local recording from remote viewing to eliminate interference between them.

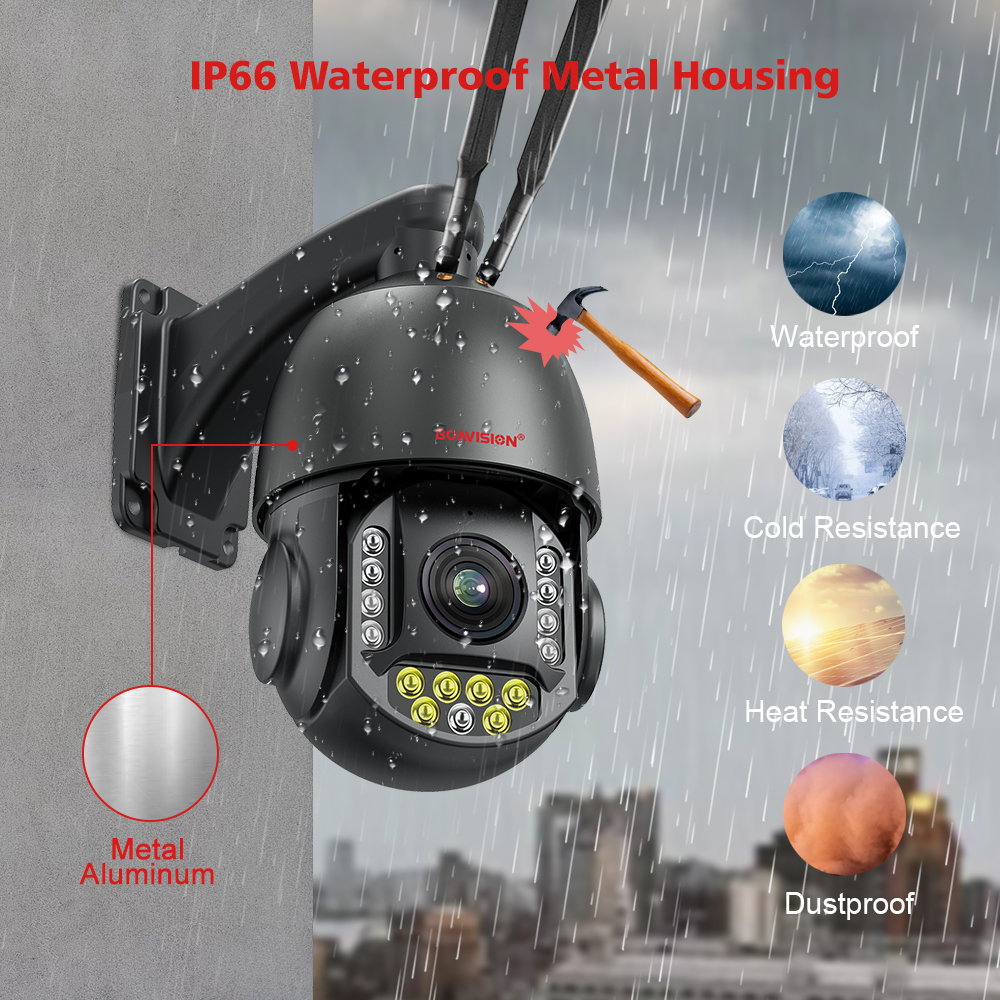

IP66 Waterproof Metal Housing
Metal Housing Material, Outdoor Use, Waterproof IP66
30X Zoom (20X optical+10X Digital)
You can flexibly zoom in and zoom out to view close-up or long-range objects according to your needs

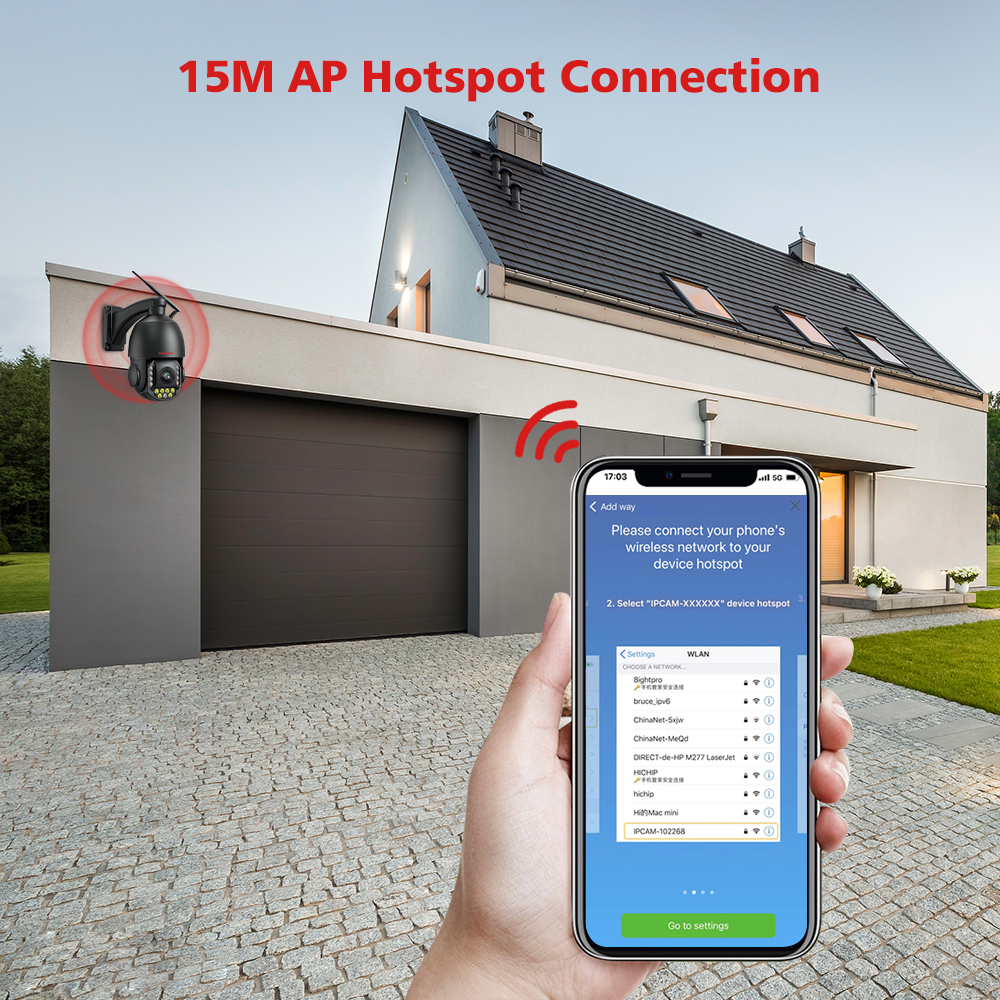

15M AP Hotspot Connection
Support Multi-users and Devices Login
Provide Android & IOS APP (CamHipro) And Professional CMS PC Client Software
Main features :
●4K 8MP WIFI / 4G / POE three version options;
●WIFI version : Support Dual-Band Wi-Fi, 2.4 GHz and 5 GHz WiFi frequencies;
●support AI human auto tracking & zoom; Support Cruise Zoom ; AI Smart Humanoid / Vehicle / Pets Detection;
●30X Zoom (20X optical+10X Digital);
●Three Night Vision Modes : infrared / color / smart night vision; Enhance IR Night Vision Up to 100M;
●support two way audio talk back ( build in microphone & speaker);
●High sensitivity, high signal-to-noise CMOS image sensor;
●Using SSC338Q processing chip;
●The highest pixel can reach 8MP, and the highest resolution can reach 4K (3840x2160);
●H.265 compression algorithm, effectively reduce network bandwidth, support dual stream, support mobile phone monitoring;
● Support multiple network protocols: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, etc.
● Support ONVIF protocol;
●Support manufacturer dynamic domain name and third-party dynamic domain name resolution;
●Support alarm picture to send E-Mail;
●Support alarm picture and alarm video upload to FTP server;
● Support to capture pictures regularly to FTP server;
●Support static IP, also support dynamic IP (DHCP);

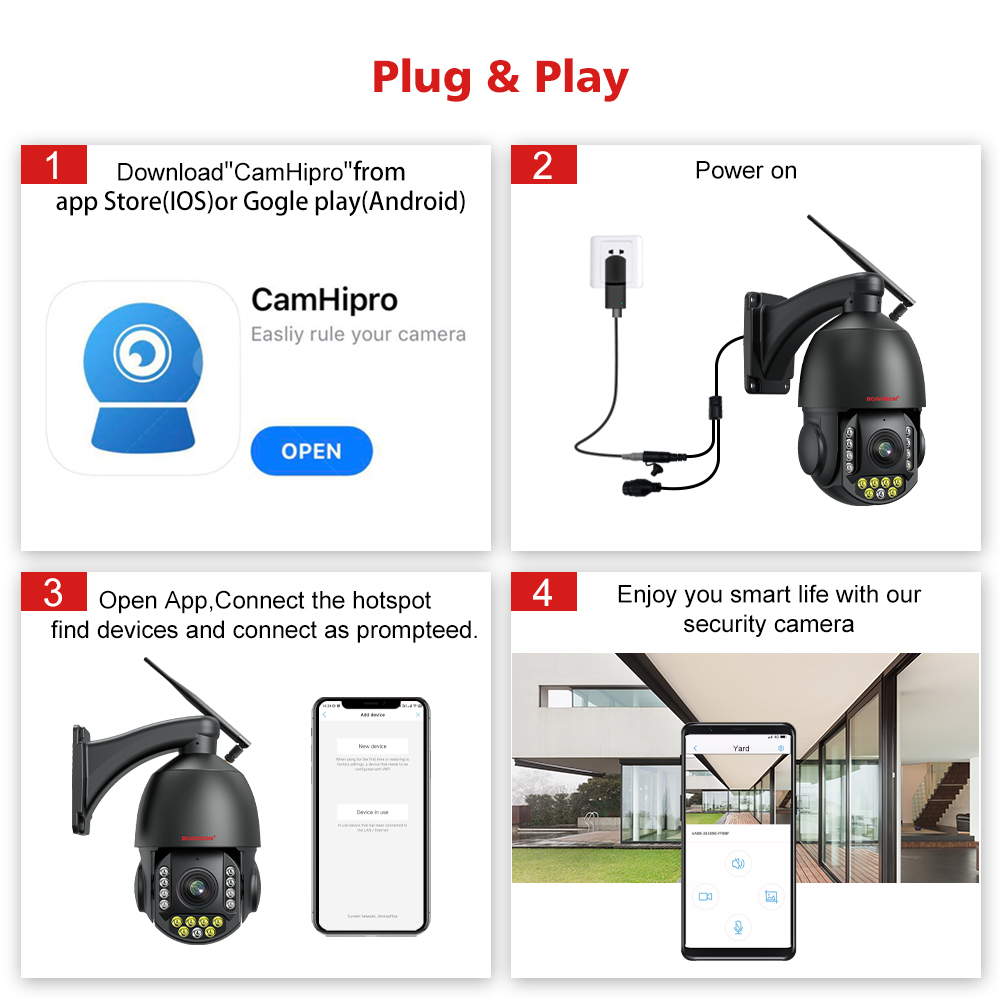

● Support P2P plug and play;
●Support IE, Google, Firefox browsers;
●Maximum 6 users can browse at the same time (each stream supports 3 users);
●Provide motion detection (area, sensitivity can be set) alarm function;
● Support humanoid recognition function;
●Support UPNP automatic port mapping;
●Support TF card function, up to 128G TF card;
●Support PC client to download SD card video;
●Support mobile phone download and playback SD card video recording .
Specification :
Products Model | YG-BWF93AR-800 (WIFI) | YG-B4G93AR-800 (4G) | YG-BMG93AR-800-POE (POE+WIFI) |
Processor | Mstar SSC338Q | ||
Effective pixels | 4K 8MP(3840x2160) | ||
CMOS Sensor | 1/2.8"SONY IMX415 CMOS (8MP) | ||
Min. Illumination | Color: 0.001Lux@F1.6; B/W: 0.001Lux@F1.6, 0Lux with IR | ||
Lens | 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital) | ||
Day/Night | Auto ICR | ||
S/N Ratio | ≥72dB | ||
WDR | D-WDR (≥128dB) | ||
Shutter speed | 1/2 - 1/20,000s | ||
AGC | Auto / Manual | ||
White balance | AUTO, ATW, Indoor, Outdoor, Manual | ||
BLC | ON/OFF | ||
OSD Display | Camera Name,Zoom,Data&Time | ||
Noise Reduction | DNR,3DNR | ||
Night vision distance | 8pcs Array Infrared LEDs+9PCS White leds,100mNight Vision. | ||
Video compression Standard | H.264/H.265/H.265+ | ||
Video streaming | Dual streaming | ||
Video resolution | Main stream:3840*2160@10fps; 2592*1944/2560*1440/1080P/960P/720P/D1@30fps | ||
Sub-stream:1280*720/800x600/800x448/CIF@30fps | |||
Bit rate | CBR/VBR, bitrate：32Kbps~10Mbps variable | ||
Audio | Audio compression standard: G711U/G711A/AAC | ||
Audio code rate: Rate adaptive | |||
Audio Input: Support, built-in Microphone | |||
Audio Output: Support Two Way Audio Talk Back(With Speaker) | |||
Network | WIFI 802.11 b/g/n, 10/100M Base-TX Ethernet, RJ45 Connector | ||
P2P | Android、IOS APP： camhipro | ||
Network Support | Support Dual-Band Wi-Fi,2.4GHz and 5GHz WiFi frequencies,more faster data speed and stable network connection | GSM 900/1800 MHz UTRA FDD Band I/VIII E-UTRA FDD Band 1/3/7/8/20/28 E-UTRA TDD Band 38/40/41 | support wifi connection & POE connection |
Protocols | TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，HTTPS，P2P | ||
Motion detect | Support | ||
Privacy Zone Masking | Support | ||
Onvif-compatible | Support | ||
Luminary | 8pcs Array Infrared LED + 9pcs spotlight and IR integrated LED | ||
Night vision distance | 100M | ||
Lamp control | Auto, Manual, by Zoom | ||
Pan Range | 355° rotation | ||
Tilt Range | 0~90°(Auto flip) | ||
Manual pan speed | 0~40º/S | ||
Manual tilt speed | 0~30º/S | ||
Preset speed | 40°/S | ||
Actual preset Accuracy | ±0.10° | ||
Preset points | 255 | ||
Patrol | 4 patrols | ||
Pattern | 1 | ||
Left and right limit scan | 1 | ||
Pan scan | 1 | ||
Park Action | Preset / Patrol / Pattern / Pan scan | ||
Power Supply | DC12V 3A | ||
Consumption | <60W | ||
Work temperature | External–35℃~55℃ | ||
Work Humidity | 0%~90% (Non condensing) | ||
Park Action | Preset / Patrol / Pattern / Pan scan | ||
Power Supply | DC12V 3A | ||
Consumption | <60W | ||
Work temperature | External35℃~55℃ | ||
Work Humidity | 0%~90% (Non condensing) | ||

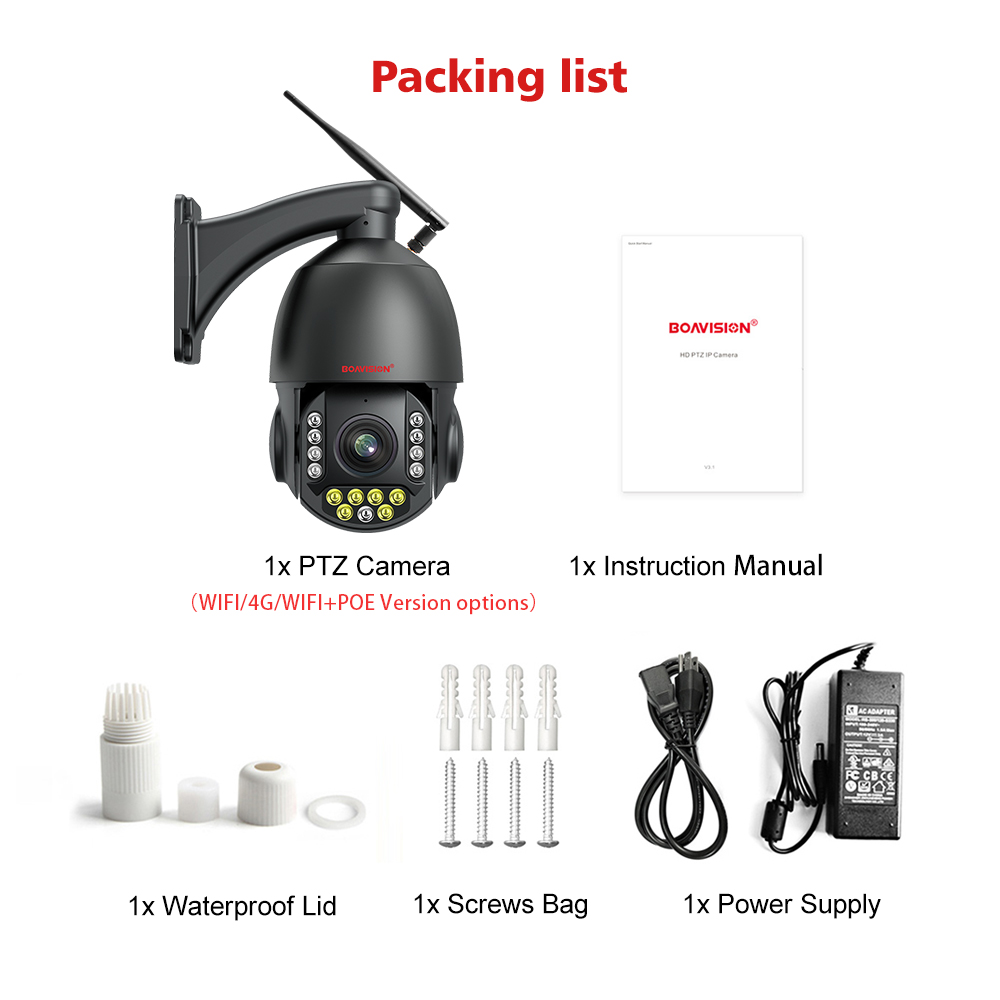

Packing list :
1*Dome Speed IP Camera Built-in Microphone&Speaker (TF Card Optional Choose);
1*DC 12V 3A Power Supply ;
1*Manual;
1*Screws Bag;
1*Antenna.
